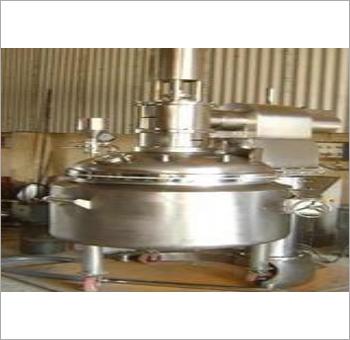

Contra Rotary Mixer

Contra Rotary Mixer
Contra Rotary Mixer
Product Code : 31
Product Description

Our experienced team of professionals is engaged in manufacturing, exporting and supplying an excellent quality array of Contra Rotary Mixer. This mixer is provided with 3 castor wheels for moving necessary nozzles and is on top dish and vessel. It is used for mixing and blending liquid-solid paste, gel in various industries. This mixer is available in varied designs and batch sizes as per the requirements of the clients. Further, this Contra Rotary Mixer is manufactured under the supervision of skilled technocrats using top grade raw material in adherence with the international standards.

Features:

  • High performance

  • Longer functional life

  • Durable finish standards

  • Sturdy construction

Principle
The drive is connected to the beaters through a set of Spiral Bevel Gears. The Contra Rotary Motion is imparted for mixing / blending liquid-solid paste, gel which requires rigorous mixing.

Basic Features
Vessel
cylindrical with welded bottom dish and flanged top dish. It is provided with 3 castor wheels for moving necessary nozzles are provided on top dish and vessel. Top dish is attached to drive mounting plates so as to lift and move down by means of hydraulic lifting arrangement. Depend upon process conditions & product characteristics and batch size, vessel can be designed.

Agitator Assembly
It consists of two beaters, one open paddle type & another closed anchor type. With scrapper The beaters are fitted over the central shafts attached to contra rotary gears.

Drive - it includes a motor coupled to the spriral bevel reduction gearbox. Total drive is mounted on a plate welded to top dish connected to hydaulic cylinder to move up and down.

Lifting mechanism- It is hydraulic power pack type to move vertically up and down a cylinder. Modification / variation / types available-

Depending on product / process conditions, following types are available

  • M.O.C - SS304 / 316 / L / Carbon steel

  • Controls - on/off, M.C.C/ PLC based

  • Motors- FLAMEPROOF / FLAMEWORTHY / STANDARD

Product that can be blended- ointments creams, pastes, adhesives.

CONTRA ROTARY MIXER

For Ointment/Cream Mixing -Plm Vjhse

Model & Details

CR100

CR 200

CR500

CR1000

CR 1500

CR2000

CR2500

Gross Cap. Ltrs

110

200

500

1000

1500

2000

2500

Bowl dimensions Dia x ht in mm

Will be provided during ordering


Overall dimensions LX WX H in mtrs








Total HP*

Will be provided during ordering
